Offset Parallel Shaft Reducers > Offset Spur Gearbox - 5:1 Ratio FF50-5

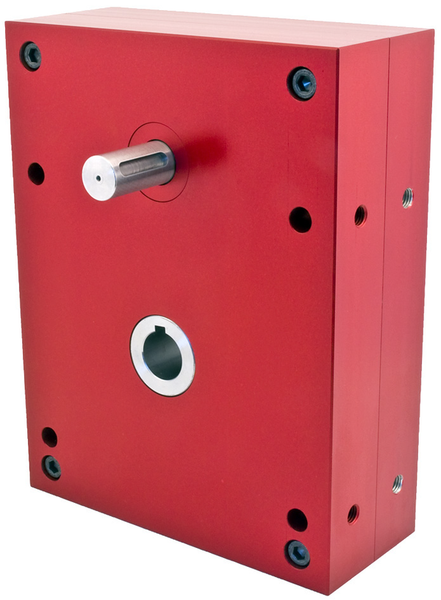

Offset Spur Gearbox - 5:1 Ratio FF50-5

Part Number: FF50-5

Offset Spur Gearbox, 25mm Shaft Input, 30mm Bore Output, 5:1 Ratio
Price Each:
,264.27
Quantity:
Total Price:
$2,264.2700
FF50-5 Specifications:
Ratio 5:1
Input Shaft Diameter 25mm
Output Bore 30mm
Material Alum. / Steel
Efficiency % @ 1000 RPM 0.93
Mount Hole Width 196mm
Mount Hole Height 176mm
Box Width 240mm
Box Length 100mm
Input Keyway Height 7mm
Use Output Key KK8-7-50
Housing Material Aluminum
Input Key Length 40mm
Output Key Width 8mm
Shaft Output Type Parallel
Output Key Height 7mm
Mount Hole 14mm
Output Key Length 50mm
FF50-5 Product Files:
• Catalog Page.pdf
View CAD Model View CAD Library
