Offset Parallel Shaft Reducers > Offset Spur Gearbox - 5:1 Ratio FFS30-XH-5-8

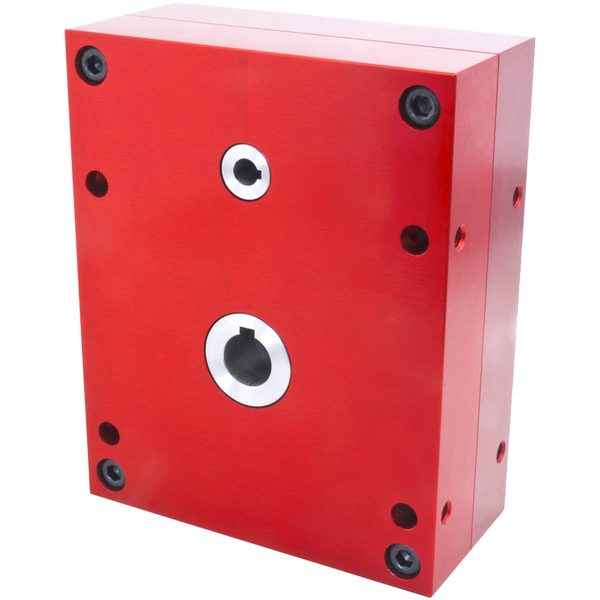

Offset Spur Gearbox - 5:1 Ratio FFS30-XH-5-8

Part Number: FFS30-XH-5-8

Offset Spur Gearbox, 8mm Bore Input, 20mm Bore Output, 5:1 Ratio, Hardened Gears
Price Each:
om $1,144.17
Quantity:
Total Price:
$1,505.4900
Quantity:Price:
1-9 $1,505.49
10-24 $1,445.27
25-49 $1,354.94
50-99 $1,249.56
100+  $1,144.17
FFS30-XH-5-8 Specifications:
Ratio 5:1
Input Bore 8mm
Output Bore 20mm
Material Alum. / Steel
Efficiency % @ 1000 RPM 0.93
Mount Hole Width 120mm
Mount Hole Height 90mm
Box Width 150mm
Box Length 60mm
Input Keyway Height 2mm
Use Output Key KK6-50
Housing Material Aluminum
Input Key Length 25mm
Output Key Width 6mm
Shaft Output Type Parallel
Output Key Height 6mm
Mount Hole 8.5mm
Output Key Length 50mm
FFS30-XH-5-8 Product Files:
• Catalog Page.pdf
View CAD Model View CAD Library
