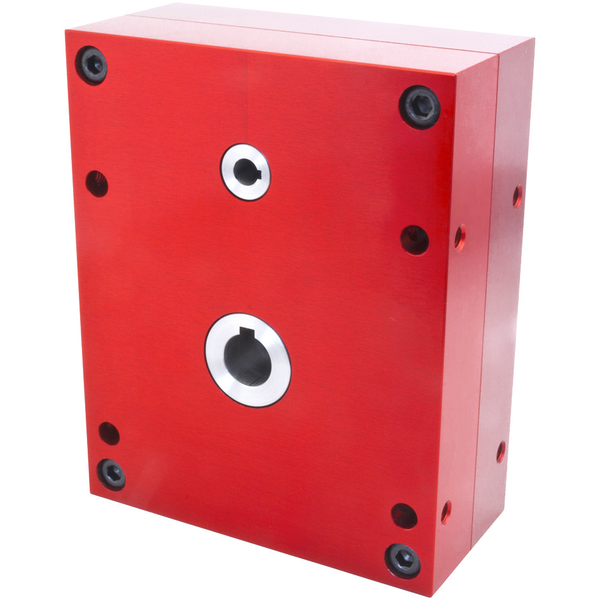

Offset Spur Gearbox - 4:1 Ratio FFS40-XH-4-15

Part Number: FFS40-XH-4-15

Offset Spur Gearbox, 15mm Bore Input, 25mm Bore Output, 4:1 Ratio, Hardened Gears

Price Each:

om $1,688.85

Quantity:

Total Price:

$2,222.17

Add to Cart

Quantity:	Price:
1-9	$2,222.17
10-24	$2,133.28
25-49	$1,999.95
50-99	$1,844.40
100+	$1,688.85

FFS40-XH-4-15 Specifications:
Ratio	4:1
Input Bore	15mm
Output Bore	25mm
Material	Alum. / Steel
Efficiency % @ 1000 RPM	0.93
Mount Hole Width	160mm
Mount Hole Height	128mm
Box Width	190mm
Box Length	90mm
Input Keyway Height	5mm
Use Output Key	KK8-7-50
Housing Material	Aluminum
Input Key Length	50mm
Output Key Width	8mm
Shaft Output Type	Parallel
Output Key Height	7mm
Mount Hole	12.5mm
Output Key Length	50mm

FFS40-XH-4-15 Product Files:
• Catalog Page.pdf
