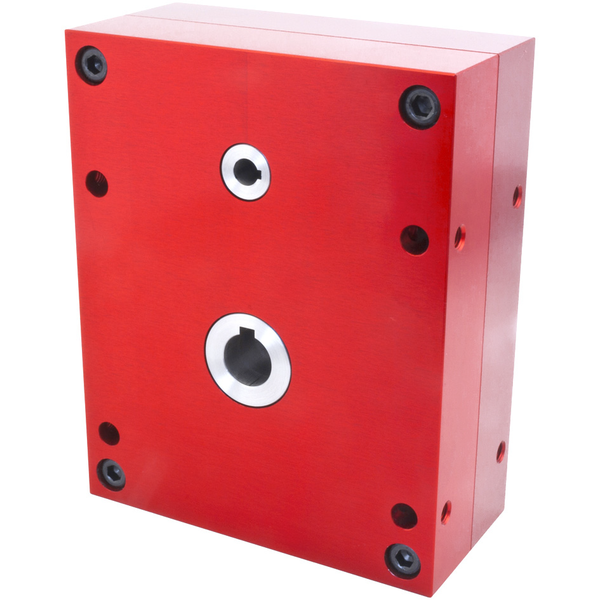

Offset Spur Gearbox - 2:1 Ratio FFS50-2-19

Part Number: FFS50-2-19

Offset Spur Gearbox, 19mm Bore Input, 30mm Bore Output, 2:1 Ratio
Price Each:
om $1,978.96
Quantity:
Total Price:
$2,603.90
Quantity:Price:
1-9 $2,603.90
10-24 $2,499.74
25-49 $2,343.51
50-99 $2,161.24
100+  $1,978.96
FFS50-2-19 Specifications:
Ratio 2:1
Input Bore 19mm
Output Bore 30mm
Material Alum. / Steel
Efficiency % @ 1000 RPM 0.93
Mount Hole Width 196mm
Mount Hole Height 176mm
Box Width 240mm
Box Length 100mm
Input Keyway Height 5mm
Use Output Key KK8-7-50
Housing Material Aluminum
Input Key Length 50mm
Output Key Width 8mm
Shaft Output Type Parallel
Output Key Height 7mm
Mount Hole 14mm
Output Key Length 50mm
FFS50-2-19 Product Files:
• Catalog Page.pdf
View CAD Model View CAD Library
