Precision Helical Gears Inch Series hg48p21s-120r

Part Number: HG48P21S-120R

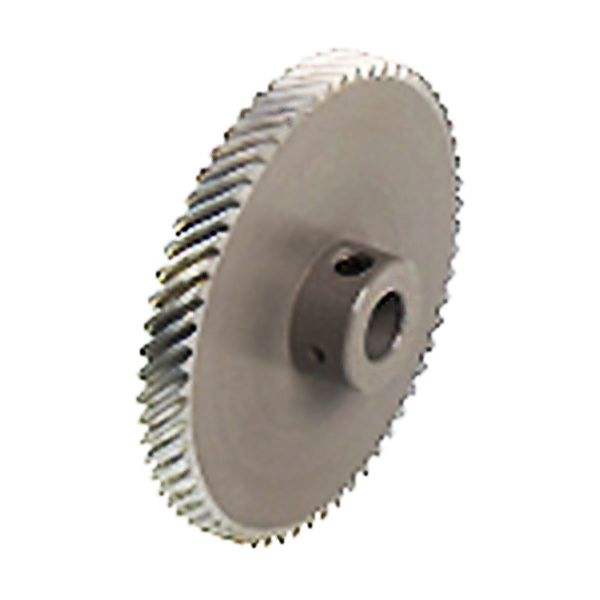

Helical Gear, 48 Pitch, 120 Teeth, 0.1873 Bore Diameter, 45° Right Hand Helix

Price Each:

ll for Price

Quantity:

Add to Quote

HG48P21S-120R Specifications:
Unit System	inch
Type	Helical Gear
Pitch	48
Pitch Diameter	3.5355
Number Of Teeth	120
Bore Diameter	0.1873 in.
Face Width	0.188 in.
Helix Hand	Right
Material	303 Stainless Steel
Hub Diameter	0.375
Hub Style	Set Screw
Outside Diameter	3.576 in.
Overall Length	0.406 in.
Quality	AGMA Q10
Hub Length	0.219
Weight	0.605 lb.
Helix Angle	45° 19'
Pressure Angle	20°
Bore Tolerance	+.0005/-.0000 in.

HG48P21S-120R Product Files:
• Catalog Page.pdf
