Precision Worm Gears Inch Series wg48p29b-f180

Part Number: WG48P29B-F180

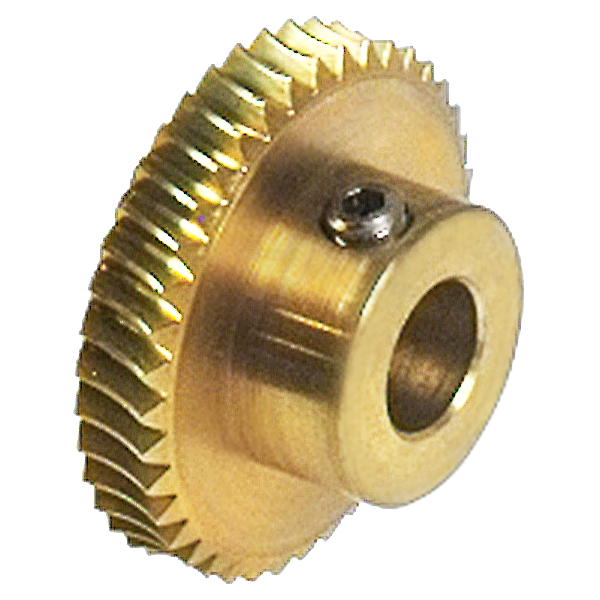

Worm Gear, 48 Pitch, 180 Teeth, 0.2498 Bore Diameter, 4 Starts

Price Each:

ll for Price

Quantity:

Add to Quote

WG48P29B-F180 Specifications:
Unit System	inch
Type	Worm Gear
Pitch	48
Pitch Diameter	3.75
Number Of Teeth	180
Bore Diameter	0.2498 in.
Face Width	0.188 in.
Helix Hand	Right
Material	Bronze QQ-B-637 Alloy 464
Hub Diameter	0.5
Hub Style	Set Screw
Outside Diameter	3.823 in.
Overall Length	0.406 in.
Quality	AGMA Q10
Hub Length	0.22
Weight	0.73 Lb.
Helix Angle	14° 2'
Pressure Angle	25°
Number of Starts	4
Bore Tolerance	+.0005/-.0000 in.
Circular Pitch	0.2618 in.

WG48P29B-F180 Product Files:
• Catalog Page.pdf
