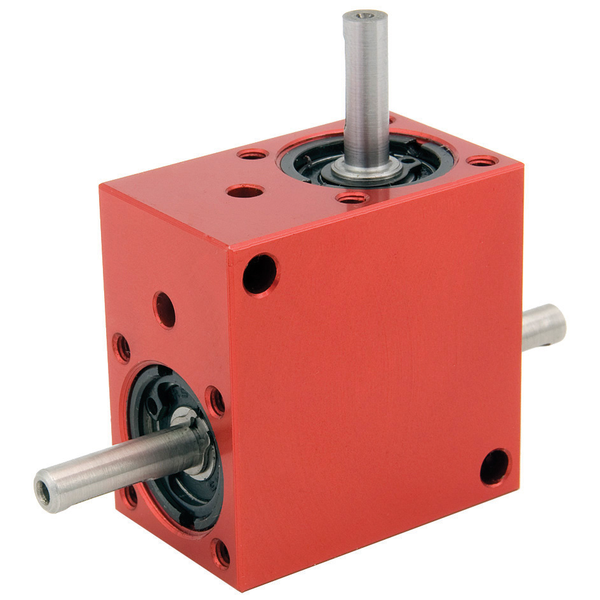

Bevel Tee Gearbox - 1:1 Ratio

Bevel Tee Gearbox, 5mm Input Dia., 5mm Output Dia., 1:1 Ratio, ≅1° Backlash
Price Each:
$237.47
Total Price:
$316.63
Quantity:

Quantity 1-9 10-24 25-49 50-99 100+
Price for each $316.63 $303.97 $284.97 $262.80 $237.47

BLHT20-1 Specifications:

  • Ratio: 1:1
  • Unit System: metric
  • Backlash: ≈1°
  • Input Shaft Diameter: 5mm
  • Output Shaft Diameter: 5mm
  • Efficiency @ 1000 RPM: 0.88 %
  • Type: Bevel Tee
  • Output Torque @ 3000 RPM: 0.66 Nm
  • Weight: 0.12kg
  • Material: Alum. / Steel
  • Box Height: 40mm
  • Box Width: 40mm
  • Box Length: 25mm
  • Max Input RPM: 4,000
  • Output Key Width: 2mm
  • Input Key Length: 10mm
  • Input Shaft Length: 16mm
  • Input Key Width: 2mm
  • Output Torque @ 2000 RPM: 0.72 Nm
  • Output Shaft Length: 16mm
  • Shaft Output Type: Right Angle
  • Use Output Key: KK2-10
  • Output Key Height: 2mm
  • Output Key Length: 10mm
