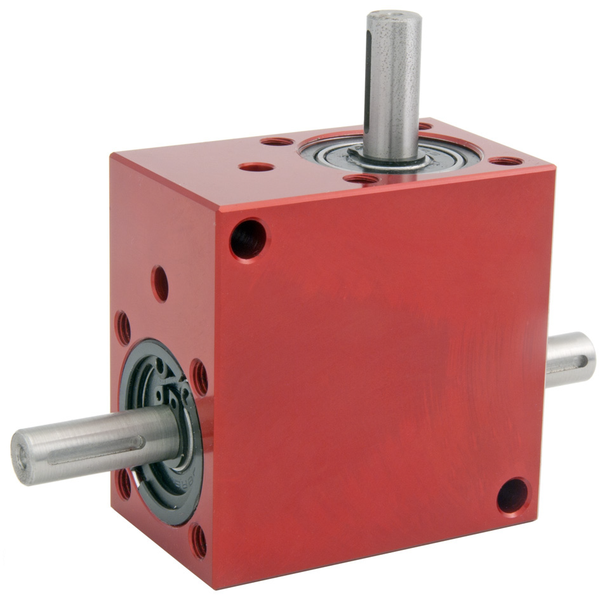

Bevel Tee Gearbox - 1:1 Ratio

Bevel Tee Gearbox, 8mm Input Dia., 8mm Output Dia., 1:1 Ratio, ≅1° Backlash
Price Each: From $307.03
Total Price: $409.37
Quantity:

Quantity 1-9 10-24 25-49 50-99 100+
Price for each $409.37 $393.00 $368.43 $339.78 $307.03

BLHT30-1 Specifications:

  • Ratio: 1:1
  • Unit System: metric
  • Backlash: ≈1°
  • Input Shaft Diameter: 8mm
  • Output Shaft Diameter: 8mm
  • Efficiency @ 1000 RPM: 0.88 %
  • Type: Bevel Tee
  • Output Torque @ 3000 RPM: 1.65 Nm
  • Weight: 0.3kg
  • Material: Alum. / Steel
  • Box Height: 55mm
  • Box Width: 55mm
  • Box Length: 34mm
  • Max Input RPM: 4,000
  • Output Key Width: 2mm
  • Input Key Length: 14mm
  • Input Shaft Length: 20mm
  • Output Shaft Length: 20mm
  • Input Key Width: 2mm
  • Shaft Output Type: Right Angle
  • Use Output Key: KK2-14
  • Output Key Height: 2mm
  • Use Input Key: KK2-14
  • Input Key Height: 2mm
  • Output Key Length: 14mm
Product Files:
