Counter Rotating Bevel Gearboxes > Bevel Counter Rotate Gearbox - 1:1 Ratio

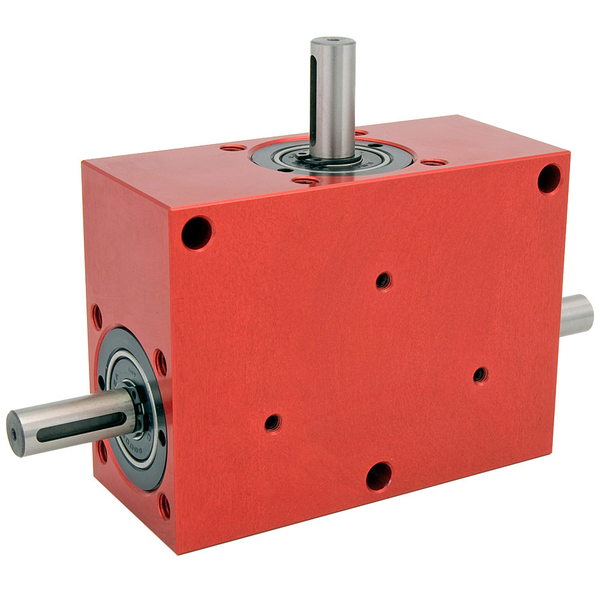

Bevel Counter Rotate Gearbox - 1:1 Ratio

Part Number: BLHM40-1

Bevel Counter Rotate Gearbox, 10mm Input Dia.,10mm Output Dia., 1:1 Ratio, ≅1° Backlash
Price Each:
om $690.36
Quantity:
Total Price:
$908.3700
Quantity:Price:
1-9 $908.37
10-24 $872.04
25-49 $817.53
50-99 $753.95
100+  $690.36
BLHM40-1 Specifications:
Ratio 1:1
Output Shaft Diameter 10mm
Input Shaft Diameter 10mm
Material Alum. / Steel
Efficiency @ 1000 RPM 0.88 %
Box Width 44mm
Box Length 100mm
Use Output Key KK3-20
Input Key Length 20mm
Output Key Width 3mm
Shaft Output Type Right Angle
Output Key Height 3mm
Input Bore Depth N/A
Output Key Length 20mm
Output Bore Depth N/A
BLHM40-1 Product Files:
• Catalog Page.pdf
View CAD Model View CAD Library
