High Ratio Gearboxes > High Ratio Bevel Gear Reducer - 6:1 Ratio

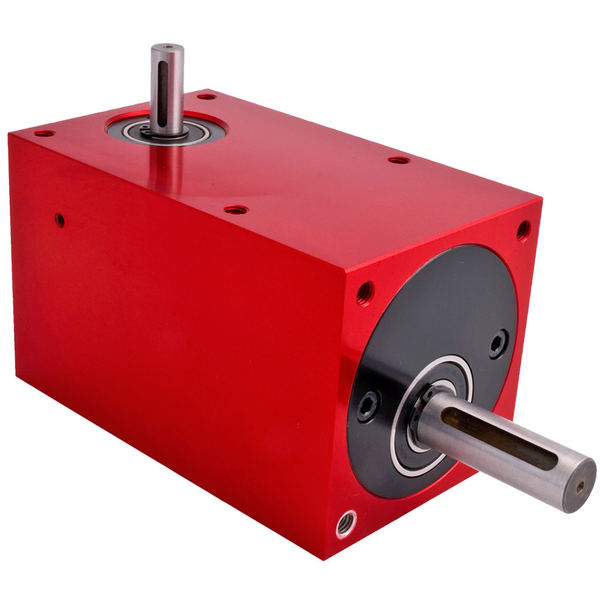

High Ratio Bevel Gear Reducer - 6:1 Ratio

Part Number: BLN20-6

High Ratio Bevel Gear Reducer, 5mm Input Dia., 6mm Output Dia., 6:1 Ratio
Price Each:
om $899.09
Quantity:
Total Price:
$1,183.0100
Quantity:Price:
1-9 $1,183.01
10-24 $1,135.69
25-49 $1,064.71
50-99 $981.90
100+  $899.09
BLN20-6 Specifications:
Ratio 6:1
Output Shaft Diameter 6mm
Input Shaft Diameter 5mm
Material Alum. / Steel
Efficiency @ 1000 RPM 0.88 %
Box Width 44mm
Box Length 75mm
Use Output Key KK2-14
Input Key Length 10mm
Output Key Width 2mm
Shaft Output Type Right Angle
Output Key Height 2mm
Input Bore Depth N/A
Output Key Length 14mm
Output Bore Depth N/A
BLN20-6 Product Files:
• Catalog Page.pdf
View CAD Model View CAD Library
