High Ratio Gearboxes > High Ratio Bevel Gear Reducer - 6:1 Ratio

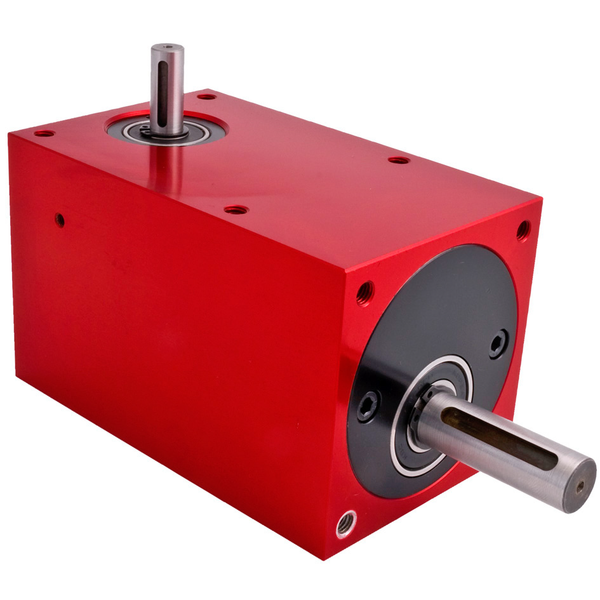

High Ratio Bevel Gear Reducer - 6:1 Ratio

Part Number: BLN30-6

High Ratio Bevel Gear Reducer, 8mm Input Dia., 10mm Output Dia., 6:1 Ratio
Price Each:
om $962.83
Quantity:
Total Price:
$1,266.88
Quantity:Price:
1-9 $1,266.88
10-24 $1,216.21
25-49 $1,140.19
50-99 $1,051.51
100+  $962.83
BLN30-6 Specifications:
Ratio 6:1
Output Shaft Diameter 8mm
Input Shaft Diameter 8mm
Material Alum. / Steel
Efficiency @ 1000 RPM 0.88 %
Box Width 60mm
Box Length 98mm
Use Output Key KK3-20
Input Key Length 14mm
Output Key Width 3mm
Shaft Output Type Right Angle
Output Key Height 3mm
Input Bore Depth N/A
Output Key Length 20mm
Output Bore Depth N/A
BLN30-6 Product Files:
• Catalog Page.pdf
View CAD Model View CAD Library
