High Ratio Bevel Gear Reducer - 6:1 Ratio

Part Number: BLN60-6

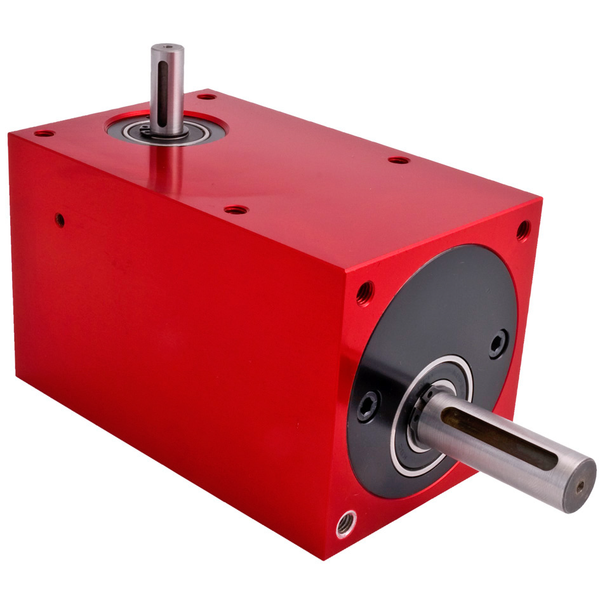

High Ratio Bevel Gear Reducer, 20mm Input Dia., 30mm Output Dia., 6:1 Ratio
Price Each:
om $1,415.75
Quantity:
Total Price:
$1,862.83
Quantity:Price:
1-9 $1,862.83
10-24 $1,788.32
25-49 $1,676.55
50-99 $1,546.15
100+  $1,415.75
BLN60-6 Specifications:
Ratio 6:1
Output Shaft Diameter 20mm
Input Shaft Diameter 15mm
Material Alum. / Steel
Efficiency @ 1000 RPM 0.88 %
Box Width 160mm
Box Length 245mm
Use Output Key KK8-7-50
Input Key Length 30mm
Output Key Width 7mm
Shaft Output Type Right Angle
Output Key Height 8mm
Input Bore Depth N/A
Output Key Length 50mm
Output Bore Depth N/A
BLN60-6 Product Files:
• Catalog Page.pdf
View CAD Model View CAD Library
