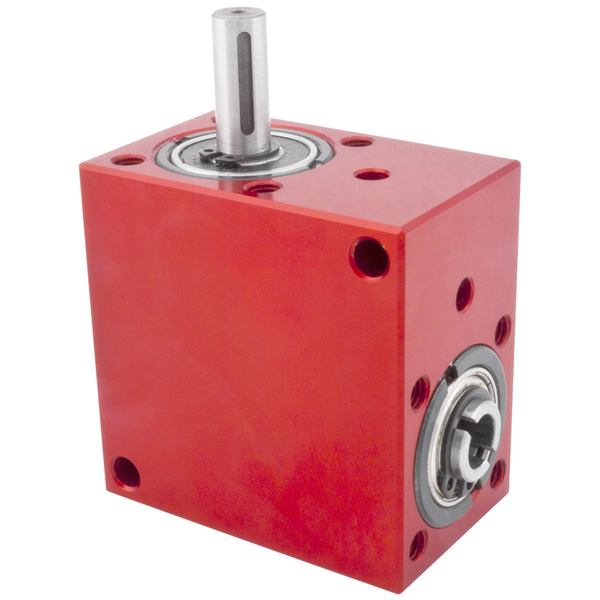

Bevel Gearbox - 1:1 Ratio

Bevel Gearbox, 8mm Input Bore, 8mm Output Dia., 1:1 Ratio, ≅1° Backlash
Price Each:
om $415.76
Total Price:
$554.3500
Quantity:

Quantity 1-9 10-24 25-49 50-99 100+
Price for each $554.35 $532.18 $498.92 $460.11 $415.76

BLHI30-1 Specifications:

  • Ratio: 1:1
  • Input Bore Diameter: 8mm
  • Output Bore Diameter: 8mm
  • Material: Alum. / Steel
  • Efficiency @ 1000 RPM: 0.88 %
  • Box Width: 55mm
  • Box Length: 34mm
  • Use Output Key: KK2-14
  • Input Key Length: 12mm
  • Output Key Width: 2mm
  • Shaft Output Type: Right Angle
  • Output Key Height: 2mm
  • Input Bore Depth: 16mm
  • Output Key Length: 14mm
  • Output Bore Depth: N/A
