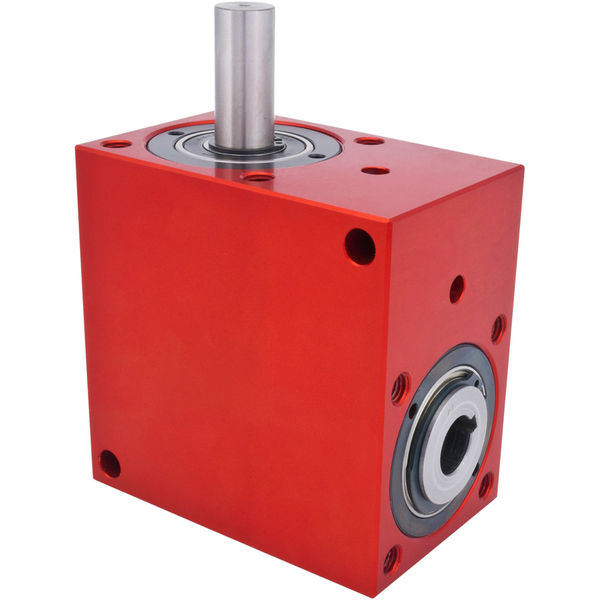

Bevel Gearbox - 2:1 Ratio

Bevel Gearbox, 20mm Input Bore, 20mm Output Dia., 2:1 Ratio, ≅1° Backlash

Price Each:

$855.38

Total Price:

$1,140.51

Quantity:

Quantity	1-9	10-24	25-49	50-99	100+
Price for each	$1,140.51	$1,094.89	$1,026.46	$946.62	$855.38

BLHI60-2 Specifications:

Ratio: 2:1
Unit System: metric
Backlash: ≈1°
Input Bore Diameter: 20mm
Output Bore Diameter: 20mm
Efficiency @ 1000 RPM: 0.88 %
Type: Bevel
Output Torque @ 3000 RPM: 19.00 Nm
Weight: 4.3kg
Material: Alum. / Steel
Box Height: 125mm
Box Width: 125mm
Box Length: 80mm
Max Input RPM: 3,000
Output Key Width: 5mm
Input Key Length: 30mm
Input Key Width: 6mm
Output Torque @ 2000 RPM: 22 Nm
Output Shaft Length: 45mm
Shaft Output Type: Right Angle
Use Output Key: KK5-30
Output Key Height: 5mm
Input Bore Debth: 36mm
Use Input Key: KK6-30
Input Key Height: 6mm
Output Key Length: 30mm
