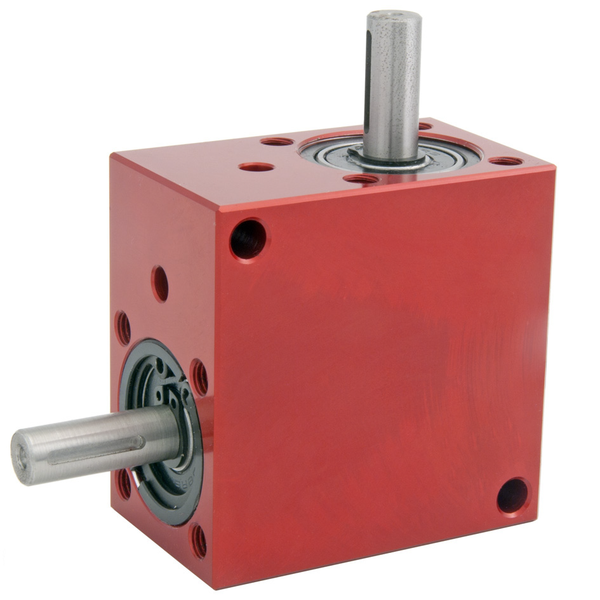

Bevel Gearbox - 1:1 Ratio

Bevel Gearbox, 8mm Input Dia., 8mm Output Dia., 1:1 Ratio, ≅1° Backlash
Price Each:
om $312.53
Total Price:
$416.7100
Quantity:

Quantity 1-9 10-24 25-49 50-99 100+
Price for each $416.71 $400.04 $375.04 $345.87 $312.53

BLH30-1 Specifications:

  • Ratio: 1:1
  • Output Shaft Diameter: 8mm
  • Input Shaft Diameter: 8mm
  • Material: Alum. / Steel
  • Efficiency @ 1000 RPM: 0.88 %
  • Box Width: 55mm
  • Box Length: 34mm
  • Use Output Key: KK2-14
  • Input Key Length: 14mm
  • Output Key Width: 2mm
  • Shaft Output Type: Right Angle
  • Output Key Height: 2mm
  • Input Bore Depth: N/A
  • Output Key Length: 14mm
  • Output Bore Depth: N/A
