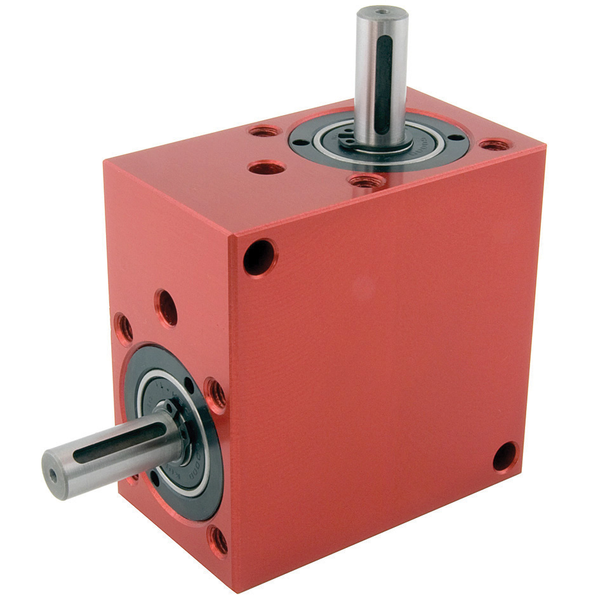

Bevel Gearbox - 1:1 Ratio

Part Number: BLH40-1AR

Bevel Gearbox, 10mm Input Dia.,10mm Output Dia., 1:1 Ratio, ≅10' Backlash

Price Each:

om $690.24

Quantity:

Total Price:

$908.2100

Add to CartAdd to Quote

Quantity:	Price:
1-9	$908.21
10-24	$871.88
25-49	$817.39
50-99	$753.81
100+	$690.24

BLH40-1AR Specifications:
Ratio	1:1
Output Shaft Diameter	10mm
Input Shaft Diameter	10mm
Material	Alum. / Steel
Efficiency @ 1000 RPM	0.88 %
Box Width	75mm
Box Length	44mm
Use Output Key	KK3-20
Input Key Length	20mm
Output Key Width	3mm
Shaft Output Type	Right Angle
Output Key Height	3mm
Input Bore Depth	N/A
Output Key Length	20mm
Output Bore Depth	N/A
