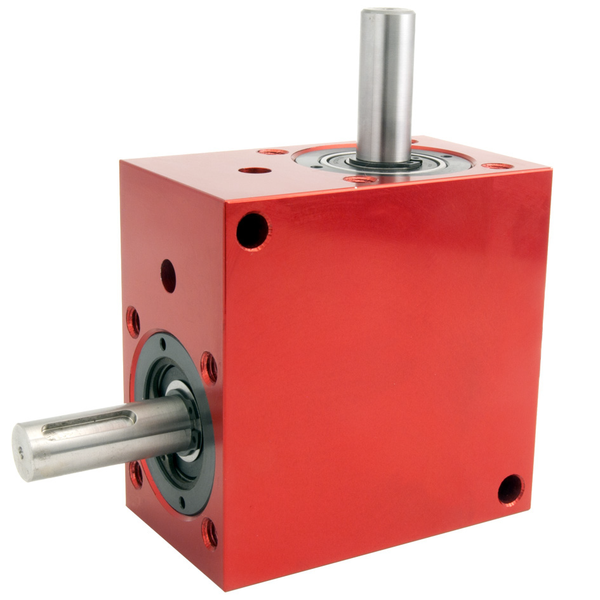

Bevel Gearbox - 1:1 Ratio

Bevel Gearbox, 15mm Input Dia., 15mm Output Dia., 1:1 Ratio, ≅1° Backlash
Price Each: From $564.96
Total Price: $753.28
Quantity:

Quantity 1-9 10-24 25-49 50-99 100+
Price for each $753.28 $723.15 $677.95 $625.22 $564.96

BLH50-1 Specifications:

  • Ratio: 1:1
  • Unit System: metric
  • Backlash: ≈1°
  • Input Shaft Diameter: 15mm
  • Output Shaft Diameter: 15mm
  • Efficiency @ 1000 RPM: 0.88 %
  • Type: Bevel
  • Output Torque @ 3000 RPM: 11.50 Nm
  • Weight: 2.2kg
  • Material: Alum. / Steel
  • Box Height: 100mm
  • Box Width: 100mm
  • Box Length: 60mm
  • Max Input RPM: 3,000
  • Output Key Width: 5mm
  • Input Key Length: 25mm
  • Input Shaft Length: 40mm
  • Input Key Width: 5mm
  • Output Torque @ 2000 RPM: 13.2 Nm
  • Output Shaft Length: 40mm
  • Shaft Output Type: Right Angle
  • Use Output Key: KK5-25
  • Output Key Height: 5mm
  • Use Input Key: NA
  • Output Key Length: 25mm
