Aluminum Oldham Couplings: 12mm x 25mm Bores

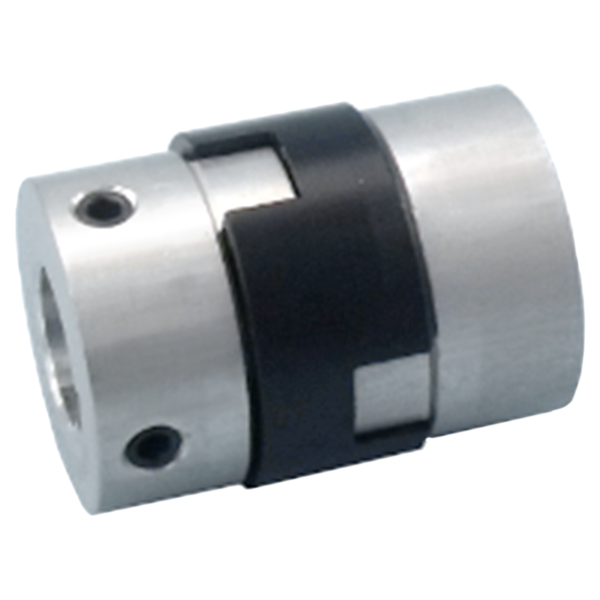

Oldham coupling, Set Screw, Aluminum, 2in. OD, 12mm x 25mm bores
Price Each: From $63.91
Total Price: $106.51
Quantity:

 To $63.91

514HT50.3552 Specifications:

  • Unit System: metric
  • Bore B1: 12mm
  • Bore B2: 25mm
  • Outside Diameter: 2.050 in.
  • Type: Oldham
  • Material: Aluminum / Acetal
  • Bore Tolerance: +.0012 in.
  • Backlash: Zero Backlash
  • Fastening Method: Set Screw
  • Minimum Order Qty.: 1
  • Max RPM: 3000
  • Torsion Stiff (Lb*in/Deg): 212.4
  • Electrical Isolation: Yes
  • Length Extended: N/A
  • Max Angular Offset: 2°
  • Max Axial Offset: +0.008/-0 in.
  • Mass: 206g
  • Max Torque: 266 lb-in
  • Temperature Range: -4°F to +140°F
  • HP @ 1750 RPM: N/A
  • Typ Air Gap: N/A
