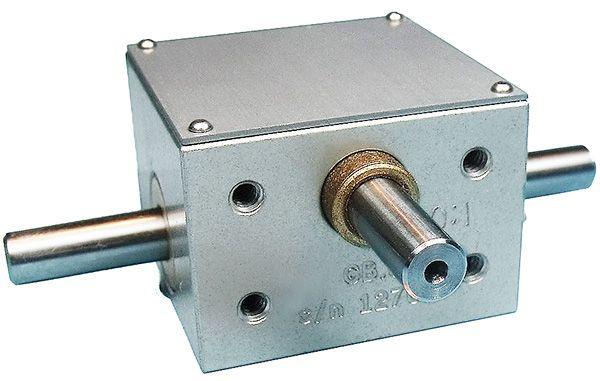

Miniature Right Angle Gearbox - 5:1 Ratio

Worm Wheel Gearbox, 1/4in. Input Shaft, 1/4in. Output Shaft, 5:1 Ratio
Price Each:
om $81.60
Total Price:
$108.8000
Quantity:

Quantity 1-9 10-24 25-49 50-99 100+
Price for each $108.80 $104.45 $97.92 $90.30 $81.60

RW4-5 Specifications:

  • Ratio: 5:1
  • Output Position: Double @ 180°
  • Backlash: Approx 5°
  • % Efficiency @ 1000 RPM: 0.9
  • Material: Alum. / Stainless
  • Input Shaft Diameter: 0.2497 in. -.0002
  • Output Shaft Diameter: 0.2497 in. -.0002
  • Type: Worm Wheel
  • Weight: 0.243 lb.
  • Max Input RPM: 3,000
  • Box Height: 1.09 in.
  • Box Width: 1.5 in.
  • Box Length: 1.5 in.
  • Input Shaft Length: 0.75 in.
  • Output Shaft Length: 0.75 in.
