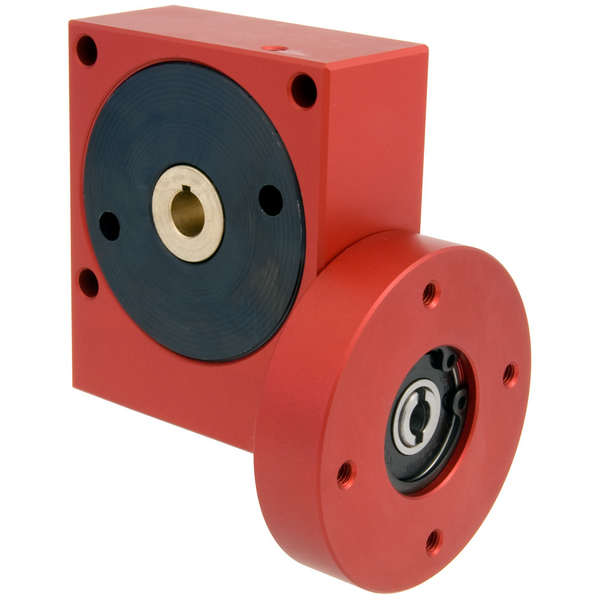

Worm Wheel Gearbox - 15:1 Ratio

Worm Wheel Gearbox, 6mm Input Bore, 8mm Hollow Bore Output, 15:1 Ratio
Price Each:
om $370.67
Total Price:
$494.2200
Quantity:

Quantity 1-9 10-24 25-49 50-99 100+
Price for each $494.22 $474.45 $444.80 $410.20 $370.67

PF30-15 Specifications:

  • % Efficiency @ 1000 RPM: 84
  • Ratio: 15:1
  • Input Bore Diameter: 6mm h7
  • Output Bore Diameter: 8mm h7
  • Backlash: 30 arc-min or better
  • Material: Alum. / Steel
  • Box Width: 60mm
  • Box Length: 28mm
  • Use Output Key: KK2-22
  • Flange Diameter: 60mm
  • Use Single Output Shaft: P30-X
  • Use Double Output Shaft: P30-DX
  • Use Input Key: SEP2-10
  • Lubrication: Greased for Life
