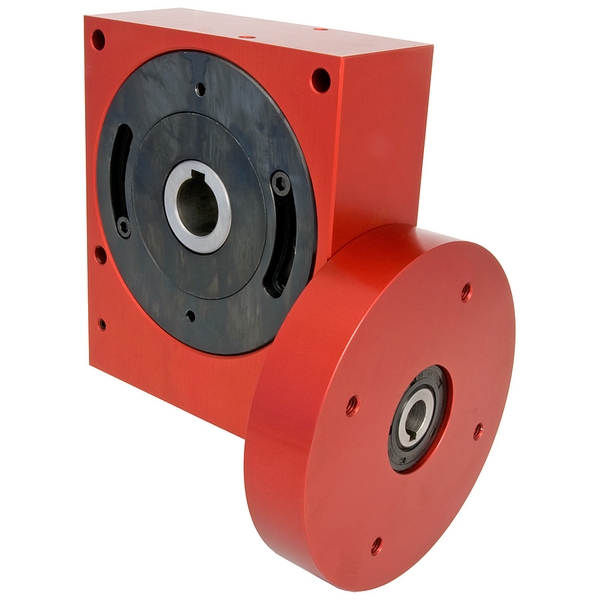

Worm Wheel Gearbox - 20:1 Ratio

Part Number: PF70-20AR

Worm Wheel Gearbox, 15mm Input Bore, 25mm Hollow Bore Output, 20:1 Ratio, Reduced Backlash
Price Each:
om $1,633.51
Quantity:
Total Price:
$2,149.35
Quantity:Price:
1-9 $2,149.35
10-24 $2,063.38
25-49 $1,934.42
50-99 $1,783.96
100+  $1,633.51
PF70-20AR Specifications:
Ratio 20:1
Input Bore Diameter 15mm h7
% Efficiency @ 1000 RPM 85
Material Alum. / Steel
Box Width 145mm
Box Length 60mm
Use Output Key KK6-8-7-40
Use Single Output Shaft P70-X
Use Double Output Shaft P70-DX
PF70-20AR Product Files:
• Catalog Page.pdf
View CAD Model View CAD Library
