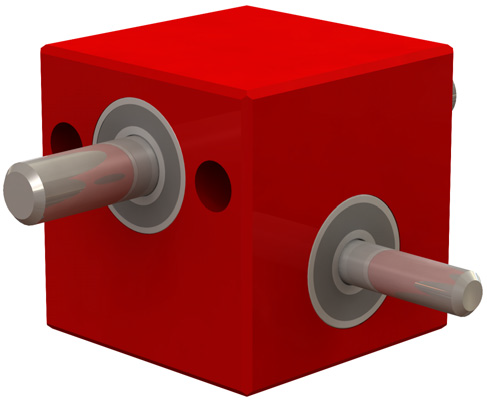

Worm Wheel Miniature Gearbox - 1:1 Ratio PR6-1

Worm Wheel Miniature Gearbox, 3mm Input Dia., 4mm Output Dia., 1:1 Ratio
Price Each: From $220.97
Total Price: $294.62
Quantity:

Quantity 1-9 10-24 25-49 50-99 100+
Price for each $294.62 $282.84 $265.16 $244.54 $220.97

PR6-1 Specifications:

  • Unit System: metric
  • Ratio: 1:1
  • Input Shaft Diameter: 3mm h7
  • Output Shaft Diameter: 4mm H7
  • % Efficiency @ 1000 RPM: 82
  • Type: Worm Wheel
  • Weight: 0.071 lb.
  • Backlash: ≈2°
  • Material: Alum. / Steel
  • Box Height: 20mm
  • Box Width: 20mm
  • Box Length: 20mm
  • Output Torque @ 3000 RPM: 0.01Nm
  • Max Input RPM: 4,000 (Short Time)
  • Input Shaft Length: 10mm
  • Output Shaft Length: 10mm
  • Output Type: Right Angle
