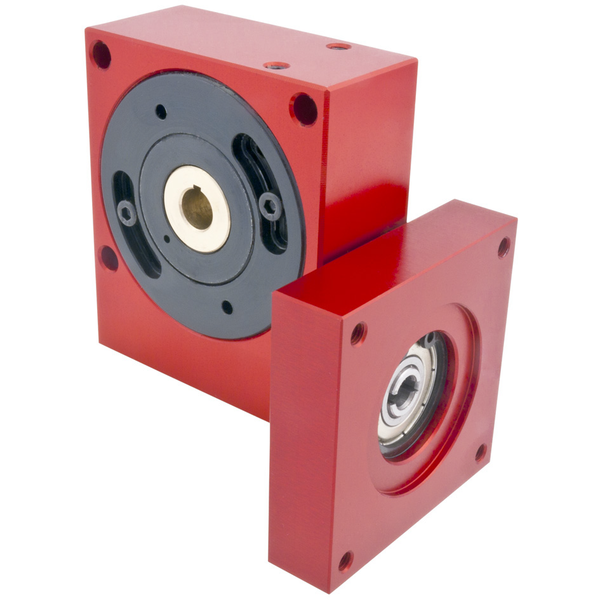

Worm Wheel Gearbox - 60:1 Ratio

Worm Wheel Gearbox, 5mm Input Bore, 6mm Hollow Bore Output, 60:1 Ratio
Price Each:
om $512.35
Total Price:
$683.1300
Quantity:

Quantity 1-9 10-24 25-49 50-99 100+
Price for each $683.13 $655.81 $614.82 $567.00 $512.35

PF20-60ANM Specifications:

  • Ratio: 60:1
  • Backlash: 8 arc-min or better
  • Input Bore Diameter: NEMA 17-5mm h7
  • Output Bore Diameter: 6mm h7
  • % Efficiency @ 1000 RPM: 60
  • Material: Alum. / Steel
  • Type: Worm
  • Weight: 0.508 Lb.
  • Max Input RPM: 6,000
  • Output Type: Right Angle
  • Box Height: 47mm
  • Box Width: 40mm
  • Box Length: 22mm
  • Use Output Key: KK2-20
  • Square Flange: 42mm
  • Use Single Output Shaft: P20-X
  • Use Double Output Shaft: P20-DX
  • Use Input Key: SEP2-8
  • Lubrication: Greased for Life
