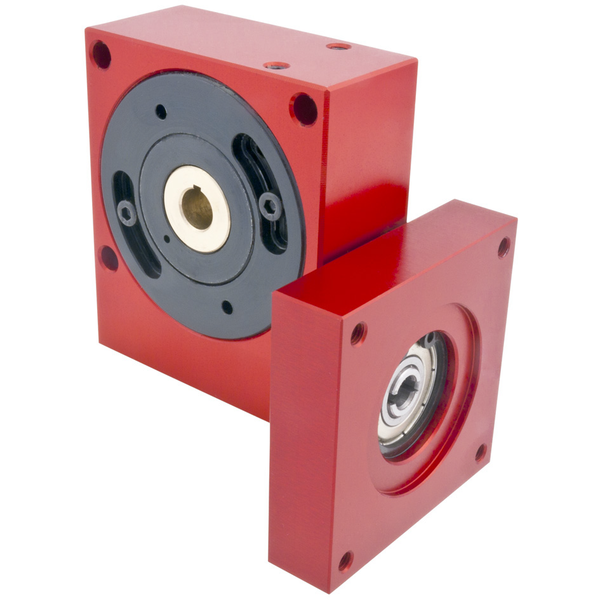

Worm Wheel Gearbox - 30:1 Ratio

Worm Wheel Gearbox, 6.35mm Input Bore, 8mm Hollow Bore Output, 30:1 Ratio
Price Each:
om $653.03
Total Price:
$870.7000
Quantity:

Quantity 1-9 10-24 25-49 50-99 100+
Price for each $870.70 $835.87 $783.63 $722.68 $653.03

PF30-30ANM Specifications:

  • Ratio: 30:1
  • Backlash: 8 arc-min or better
  • Input Bore Diameter: NEMA 23-6.35mm h7
  • Output Bore Diameter: 8mm h7
  • % Efficiency @ 1000 RPM: 71
  • Material: Alum. / Steel
  • Type: Worm
  • Weight: 1.301 lb.
  • Max Input RPM: 5,000
  • Output Type: Right Angle
  • Box Height: 70mm
  • Box Width: 60mm
  • Box Length: 28mm
  • Use Output Key: KK2-20
  • Square Flange: 57.14mm
  • Use Single Output Shaft: P30-X
  • Use Double Output Shaft: P30-DX
  • Use Input Key: SEP2-10
  • Lubrication: Greased for Life
