NEMA Flange Gearbox > Worm Wheel Gearbox - 10:1 Ratio

Worm Wheel Gearbox - 10:1 Ratio

Part Number: PF40-10ANM

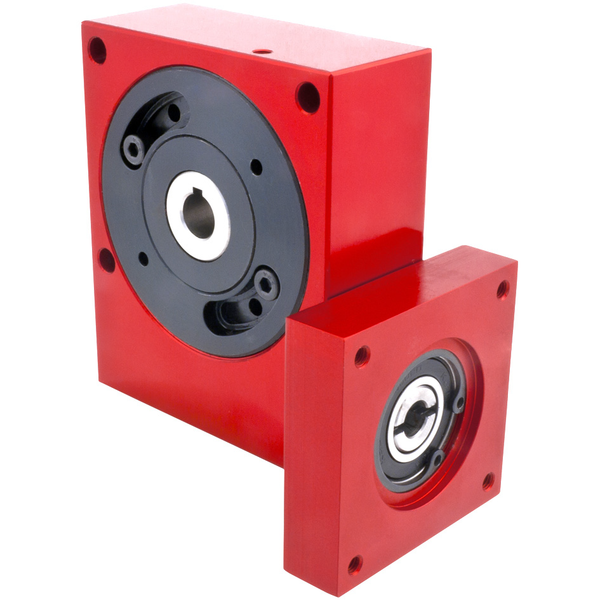

Worm Wheel Gearbox, 6.35mm Input Bore, 10mm Hollow Bore Output, 10:1 Ratio
Price Each:
om $919.16
Quantity:
Total Price:
$1,209.4200
Quantity:Price:
1-9 $1,209.42
10-24 $1,161.04
25-49 $1,088.48
50-99 $1,003.82
100+  $919.16
PF40-10ANM Specifications:
Ratio 10:1
Input Bore Diameter 8mm h7
% Efficiency @ 1000 RPM 89
Material Alum. / Steel
Box Width 91mm
Box Length 32mm
Use Output Key KK3-20
Use Single Output Shaft P40-X
Use Double Output Shaft P40-DX
PF40-10ANM Product Files:
• Catalog Page.pdf
View CAD Model View CAD Library
