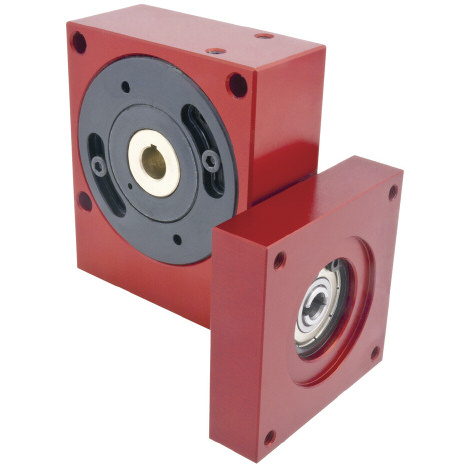

Worm Wheel Gearbox - 60:1 Ratio

Worm Wheel Gearbox, 0.250" Input Bore, 0.3125" Hollow Bore Output, 60:1 Ratio
Price Each: From $331.01
Total Price: $441.35
Quantity:

Quantity 1-9 10-24 25-49 50-99 100+
Price for each $441.35 $423.70 $397.22 $366.32 $331.01

PFA30-60NM Specifications:

  • Unit System: inch
  • Ratio: 60:1
  • Input Bore Diameter: 0.2500 in. H7
  • Output Bore Diameter: 0.3125 in. h7
  • % Efficiency @ 1000 RPM: 70
  • Type: Worm Wheel
  • Weight: 1.301 lb.
  • Backlash: ≤30 arc-min
  • Material: Alum. / Steel
  • Box Height: 2.75 in.
  • Box Width: 2.91 in.
  • Box Length: 1.1 in.
  • Output Torque @ 3000 RPM: 31 lbf.in.
  • Max Input RPM: 5,000
  • Input Shaft Length: 0.98 in.
  • Use Single Output Shaft: PA30-X
  • Use Double Output Shaft: PA30-DX
  • Use Output Key: KK125-750
  • Output Type: Right Angle
  • Use Input Key: SEP2-10
