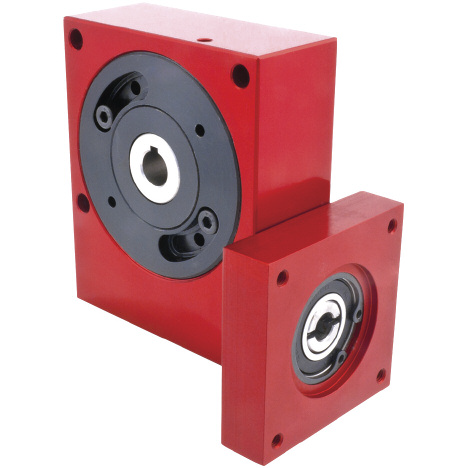

Worm Wheel Gearbox - 10:1 Ratio

Worm Wheel Gearbox, 0.3125" Input Bore, 0.3750" Hollow Bore Output, 10:1 Ratio
Price Each: From $750.02
Total Price: $1,000.03
Quantity:

Quantity 1-9 10-24 25-49 50-99 100+
Price for each $1,000.03 $960.03 $900.03 $830.03 $750.02

PFA40-10ANM Specifications:

  • Unit System: inch
  • Ratio: 10:1
  • Input Bore Diameter: 0.3125 in. h7
  • Output Bore Diameter: 0.3750 in. H7
  • % Efficiency @ 1000 RPM: 89
  • Type: Worm Wheel
  • Weight: 2.536 lb.
  • Backlash: ≤8 arc-min
  • Material: Alum. / Steel
  • Box Height: 3.55 in.
  • Box Width: 3.58 in.
  • Box Length: 1.26 in.
  • Output Torque @ 3000 RPM: 44.3 lbf.in.
  • Max Input RPM: 4,000
  • Input Shaft Length: 1.58 in.
  • Use Single Output Shaft: PA40-X
  • Use Double Output Shaft: PA40-DX
  • Use Output Key: KK125-1250
  • Output Type: Right Angle
  • Use Input Key: SEP2-14
