Newly Re-designed P-Series Gearbox improves Backlash, Corrosion Resistance and Center Distance between Input and Outputs!

Shaft to Bore > Worm Wheel Gearbox - 10:1 Ratio
Home > Shop All > Gearboxes > Wormwheel Gearboxes > Shaft to Bore > Worm Wheel Gearbox - 10:1 Ratio

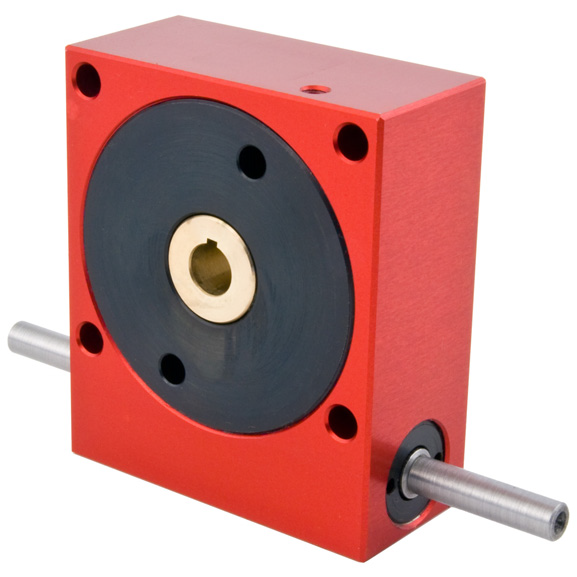

Worm Wheel Gearbox - 10:1 Ratio

6mm Input Shaft, 8mm Hollow Bore Output, 10:1 Ratio, Backlash ≤30 arc minutes
Price Each:
om $299.00
Total Price:
$398.6600
Quantity:

Quantity 1-9 10-24 25-49 50-99 100+
Price for each $398.66 $382.71 $358.79 $330.89 $299.00

P30-10 Specifications:

  • % Efficiency @ 1000 RPM: 86
  • Ratio: 10:1
  • Input Shaft Diameter: 6mm h7
  • Output Bore Diameter: 8mm h7
  • Backlash: 30 arc-min or better
  • Material: Alum. / Steel
  • Box Width: 28mm
  • Box Length: 60mm
  • Use Output Key: KK2-22
  • Use Single Output Shaft: P30-X
  • Use Double Output Shaft: P30-DX
  • Lubrication: Greased for Life

P30-10 Product Files:
