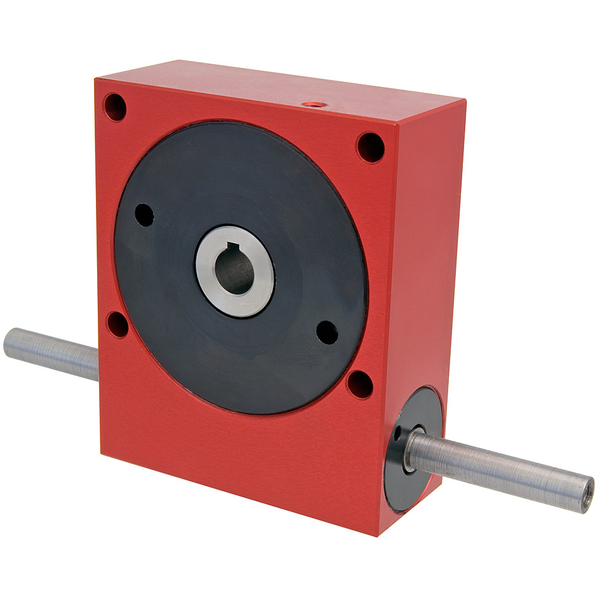

Worm Wheel Gearbox - 60:1 Ratio

8mm Input Shaft, 10mm Hollow Bore Output, 60:1 Ratio, Backlash ≤30 arc minutes
Price Each:
om $405.23
Total Price:
$540.3100
Quantity:

Quantity 1-9 10-24 25-49 50-99 100+
Price for each $540.31 $518.70 $486.28 $448.46 $405.23

P40-60 Specifications:

  • % Efficiency @ 1000 RPM: 65
  • Ratio: 60:1
  • Input Shaft Diameter: 8mm h7
  • Output Bore Diameter: 10mm h7
  • Backlash: 30 arc-min or better
  • Material: Alum. / Steel
  • Box Width: 32mm
  • Box Length: 75mm
  • Use Output Key: KK3-20
  • Use Single Output Shaft: P40-X
  • Use Double Output Shaft: P40-DX
  • Lubrication: Greased for Life

P40-60 Product Files:
