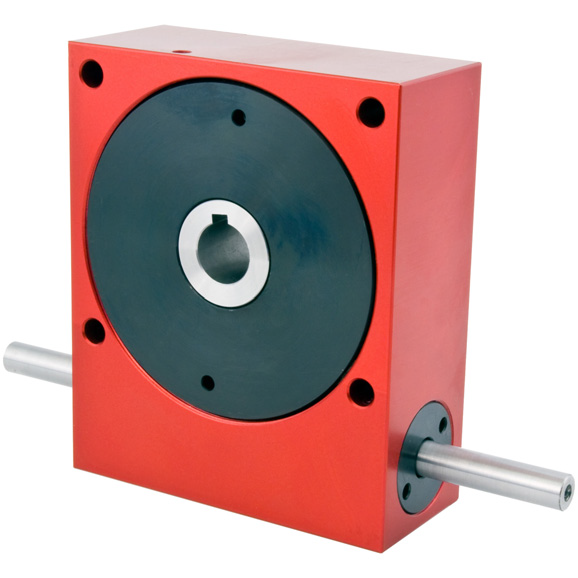

Worm Wheel Gearbox - 60:1 Ratio

12mm Input Shaft, 20mm Hollow Bore Output, 60:1 Ratio
Backlash ≅ 30 arc minutes
Price Each: From $583.57
Total Price: $778.09
Quantity:

Quantity 1-9 10-24 25-49 50-99 100+
Price for each $778.09 $754.75 $700.28 $645.82 $583.57

P60-60 Specifications:

  • Unit System: metric
  • Ratio: 60:1
  • Input Shaft Diameter: 12mm H7
  • Output Bore Diameter: 20mm H7
  • % Efficiency @ 1000 RPM: 68
  • Type: Worm Wheel
  • Weight: 9.039 lb.
  • Backlash: ≤30 arc-min
  • Material: Alum. / Steel
  • Box Height: 150mm
  • Box Width: 125mm
  • Box Length: 54mm
  • Output Torque @ 3000 RPM: 44Nm
  • Max Input RPM: 3,000
  • Input Shaft Length: 50mm
  • Output Shaft Length: N/A
  • Output Type: Right Angle
