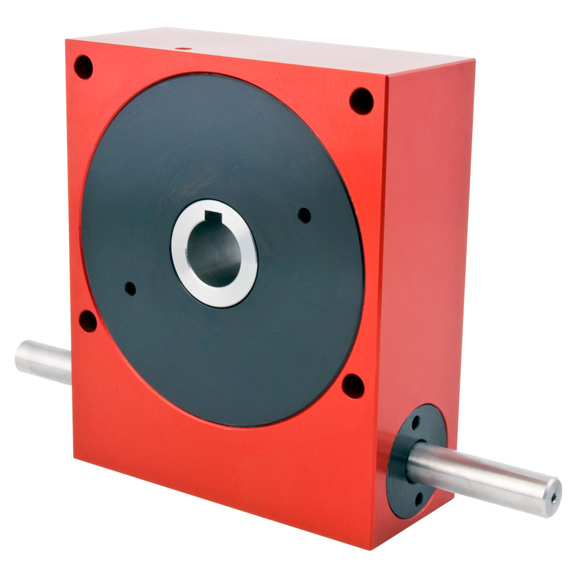

Worm Wheel Gearbox - 60:1 Ratio
15mm Input Shaft, 25mm Hollow Bore Output, 60:1 Ratio
Backlash ? 30 arc minutes
Price Each:
$699.89
Total Price:
$933.18
Quantity:
Add to Cart
Request Quote
Quantity
1-9
10-24
25-49
50-99
100+
Price for each
$933.18
$895.85
$839.86
$774.54
$699.89
P70-60 Specifications:
Unit System: metric
Ratio: 60:1
Input Shaft Diameter: 15mm H7
% Efficiency @ 1000 RPM: 67
Type: Worm Wheel
Weight: 14.11 lb.
Backlash: ≤30 arc-min
Material: Alum. / Steel
Box Height: 170mm
Box Width: 145mm
Box Length: 60mm
Output Torque @ 3000 RPM: 56Nm
Max Input RPM: 3,000
Input Shaft Length: 55mm
Output Type: Right Angle
0.0000: 1
P70-60 Product Files:
Catalog Page.pdf
