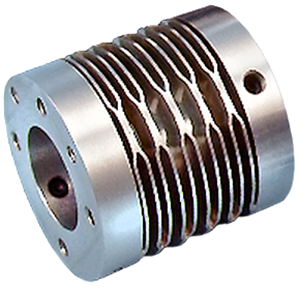

Servo-Beam Coupling: 1/4" x 1/4" Bores with 3/4" OD
Stainless, Short Type, Servo-Beam Coupling, 3/4 OD, 1/4 x 1/4 Bores
Price Each:
$33.9152
Total Price:
$36.0800
Quantity:
Request Quote
LCS.19.2424 Specifications:
Unit System: inch
Bore B1: 1/4"
Bore B2: 1/4"
Outside Diameter: 0.750 in.
Length: 0.750 in.
Type: Beam
Material: 420 Stainless Steel/416 Stainless
Bore Tolerance: +.0010 in.
Backlash: Zero Backlash
Fastening Method: Set Screw
Max RPM: 10,000 RPM
Torsion Stiff (Lb*in/Deg): 11
Electrical Isolation: No
Length Extended: N/A
Max Radial Offset: 0.010 in.
Max Angular Offset: 7 degrees
Max Axial Offset: ±0.020 in.
Mass: 23.8g
Max Torque: 12.00 lb-in
Temperature Range: -40°F to +284°F
Max Shaft Penetration B1 & B2: 0.24 in.
HP @ 1750 RPM: N/A
Hub Diameter: 0.750 in.
Typ Air Gap: N/A
Max Axial Stroke: N/A
Custom Axial Stroke: N/A
Source: USA
