Clutches with Misalignment Coupling > Adjustable Friction Clutch: 6mm x 6mm Bores

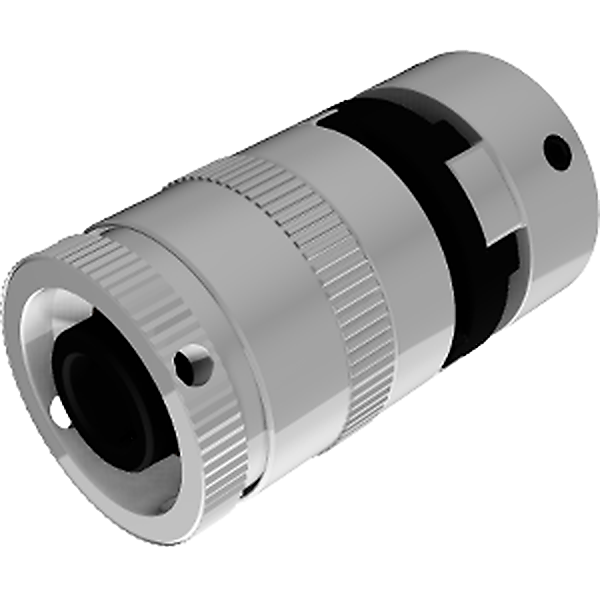

Adjustable Friction Clutch: 6mm x 6mm Bores

Part Number: 277.25.2222

Adjustable Friction Clutch, Set Screw, Max 4.7lb.in., 6mm x 6mm bores
Price Each:
om $74.49
Quantity:
Total Price:
$116.39
Quantity:Price:
1-4 $116.39
5-9 $106.50
10-24 $100.68
25-49 $94.86
50-99 $89.62
100-249 $83.80
250+  $74.49
277.25.2222 Specifications:
Unit System metric
Bore Diameter B1 6mm
Bore Diameter B2 6mm
Outside Diameter 1.020 in.
Length 46.48mm
Max Drag Torque 4.70 in-lb
Max Shaft Penetration B1 0.980
Max Shaft Penetration B2 0.980
Bore Tolerance +.0012/-.000 in.
Fastening Method Set Screw
Temp Range -20°C to +60°C
Material Alum. / Steel
Type Misalignment
Backlash Zero Backlash
Max RPM 1,000
Weight 0.1279 Lb.
Max Radial Offset 0.024
Set Screw M3
Torque Setting Adjustable Torque
Max Axial Offset 0.004
277.25.2222 Product Files:
• Catalog Page.pdf
View CAD Model View CAD Library
