High Speed In-Line Spur Gear Box > Inline Spur Gear Reducer - 8:1 Ratio

Inline Spur Gear Reducer - 8:1 Ratio

Part Number: NT91-8

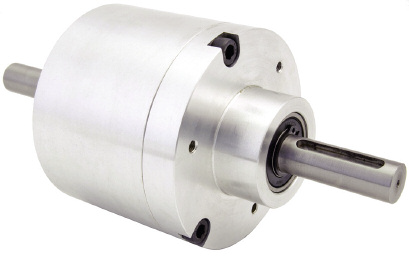

Inline Spur Gear Reducer, 15mm Input Shaft, 15mm Output Shaft, 8:1 Ratio
Price Each:
om $744.13
Quantity:
Total Price:
$979.1200
Quantity:Price:
1-9 $979.12
10-24 $939.96
25-49 $881.21
50-99 $812.67
100+  $744.13
NT91-8 Specifications:
Ratio 8:1
Output Shaft Diameter 15mm
Input Shaft Diameter 15mm
Material Alum. / Steel
Efficiency @ 1000 RPM 0.9
Box Length 74mm
Input Keyway Height 5mm
Use Output Key KK5-35
Housing Material Aluminum
Input Key Length 35mm
Output Key Width 5mm
Box Diameter 90mm
Shaft Output Type In-Line
Output Key Height 5mm
Output Key Length 35mm
NT91-8 Product Files:
• Catalog Page.pdf
View CAD Model View CAD Library
