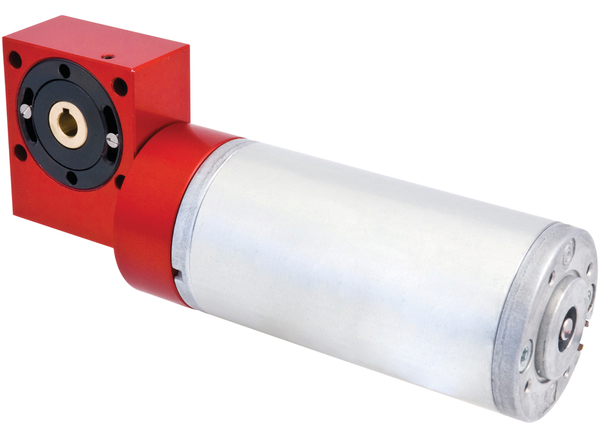

Worm Wheel Gearbox - 10:1 Ratio PF20DU-10A

Worm Wheel Gearbox, 24V DC Input , 6mm Hollow Bore Output, 10:1 Ratio, Low Backlash
Price Each:
$660.71
Total Price:
$880.94
Quantity:

Quantity 1-9 10-24 25-49 50-99 100+
Price for each $880.94 $845.70 $792.85 $731.18 $660.71

PF20DU-10A Specifications:

  • Ratio: 10:1
  • Unit System: metric
  • Backlash: ≤8 arc-min
  • Output Bore: 6mm
  • Efficiency @ 1000 RPM: 0.86
  • Type: Worm Wheel
  • Weight: 490g
  • Material: Alum. / Steel
  • Mount Hole Width: 32mm
  • Box Height: 47mm
  • Box Width: 40mm
  • Box Length: 22mm
  • Max Input RPM: 1,550
  • Housing Material: Aluminum
  • Output Key Width: 2mm
  • Mount Hole Height: 24mm
  • Flange Diameter: 42mm
  • Shaft Output Type: Right Angle
  • Use Output Key: KK2-20
  • Output Key Height: 2mm
  • Mount Hole: 4.20mm
  • Use Double Shaft: P20-DX
  • Use Single Shaft: P20-X
  • Output Key Length: 20.0mm
