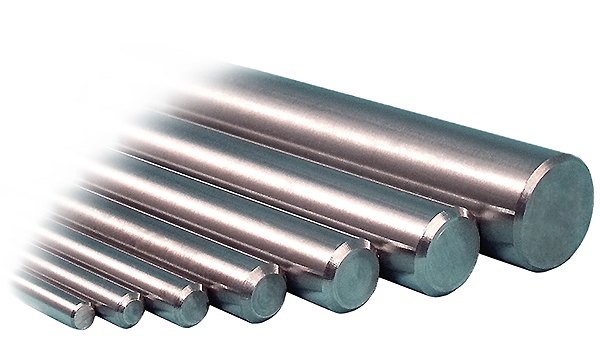

17-4 PH Stainless Precision Ground Shaft: 3mm Dia. x 300 Long

Precision Ground Shaft, 17-4 PH Stainless, 3 Dia., 300 long
Price Each: From $11.48
Total Price: $15.73
Quantity:

 To $11.48

GPM3000-300 Specifications:

  • Unit System: metric
  • Type: Precision Ground
  • Diameter: 3mm
  • Diameter Tolerance: -0.005mm
  • Diameter Nominal: 3mm
  • Length: 300mm
  • Length Tolerance: ±0.25mm
  • Length Nominal: 300mm
  • Material: 17-4PH Condition H900
  • Straightness: 0.010mm/mm
  • Chamfer: 0.25mm x 45°
  • Minimum Order Qty.: 1
  • Hardness: Cond. H900 Rockwell HRC40 – 47
  • Micro Finish: 10µin
  • Weight: 0.58 oz.
