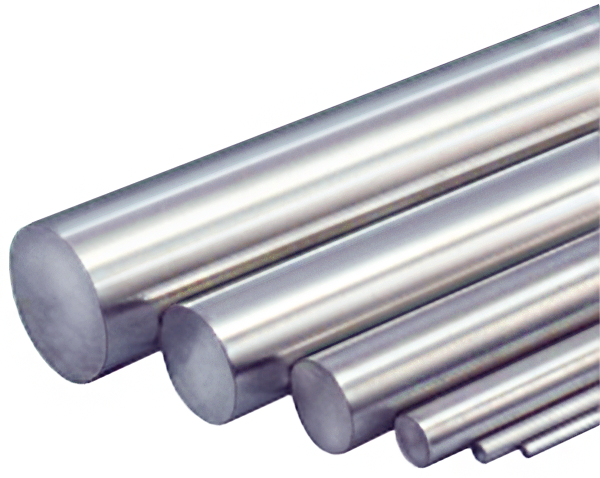

303 Stainless Precision Ground Shaft: 1/4 Dia. x 36in. Long

Precision Ground Shaft, 303 Stainless, 1/4 Dia., 36in. Long
Price Each:
om $10.78
Total Price:
$14.1900
Minimum order:
2
Quantity:

 To $10.78

GS2500-360SC Specifications:

  • Material: 303 Stainless Steel
  • Unit System: inch
  • Type: Precision Ground
  • Diameter: 0.2500 in.
  • Diameter Tolerance: -0.0002 in.
  • Length: 36.000 in.
  • Length Tolerance: ±.125 in.
  • Hardness: Rockwell B83
  • Straightness: .0004 in./in.
  • Edge Type: Straight Cut
  • Micro Finish: 10µin
  • Weight: 8.171 oz.
  • Radius Length C: N/A

GS2500-360SC Product Files:
