Counter Rotating Bevel Gearboxes > Bevel Counter Rotate Gearbox - 1:1 Ratio

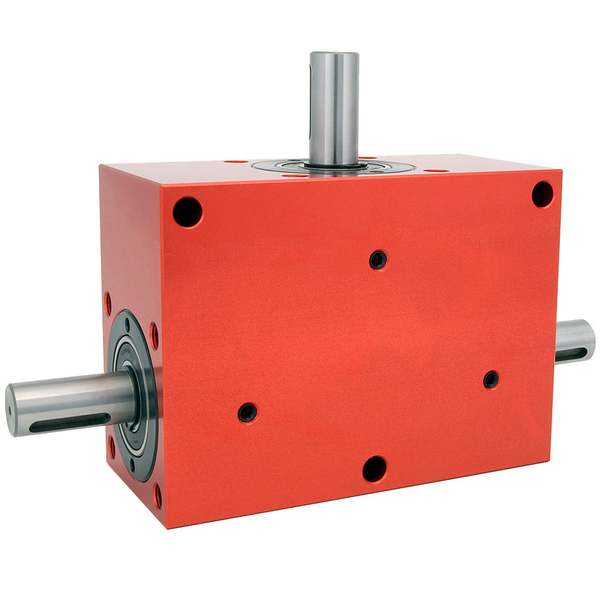

Bevel Counter Rotate Gearbox - 1:1 Ratio

Part Number: BLHM70-1

Bevel Counter Rotate Gearbox, 25mm Input Dia., 25mm Output Dia., 1:1 Ratio, ≅1° Backlash
Price Each:
om $2,372.90
Quantity:
Total Price:
$3,122.2400
Quantity:Price:
1-9 $3,122.24
10-24 $2,997.35
25-49 $2,810.02
50-99 $2,591.46
100+  $2,372.90
BLHM70-1 Specifications:
Ratio 1:1
Output Shaft Diameter 25mm
Input Shaft Diameter 25mm
Material Alum. / Steel
Efficiency @ 1000 RPM 0.88 %
Box Width 98mm
Box Length 180mm
Use Output Key KK8-7-50
Input Key Length 50mm
Output Key Width 7mm
Shaft Output Type Right Angle
Output Key Height 8mm
Input Bore Depth N/A
Output Key Length 50mm
BLHM70-1 Product Files:
• Catalog Page.pdf
View CAD Model View CAD Library
