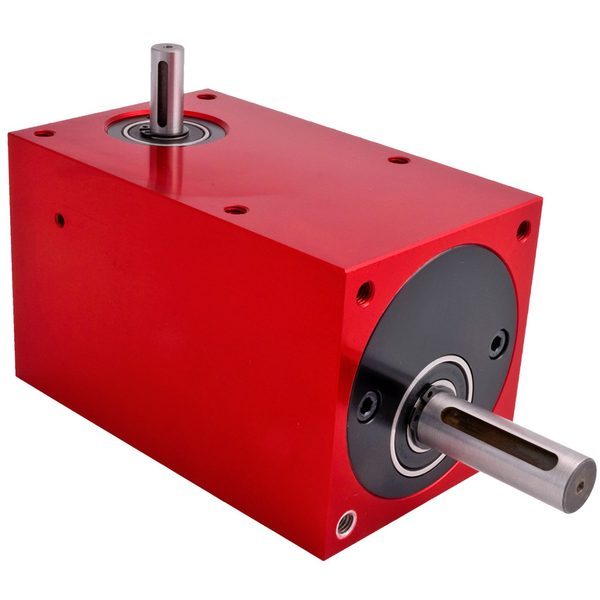

High Ratio Bevel Gear Reducer - 12:1 Ratio

Part Number: BLN40-12

High Ratio Bevel Gear Reducer, 10mm Input Dia., 15mm Output Dia., 12:1 Ratio

Price Each:

om $1,033.25

Quantity:

Total Price:

$1,359.5400

Add to Cart

Quantity:	Price:
1-9	$1,359.54
10-24	$1,305.16
25-49	$1,223.59
50-99	$1,128.42
100+	$1,033.25

BLN40-12 Specifications:
Ratio	12:1
Output Shaft Diameter	10mm
Input Shaft Diameter	10mm
Material	Alum. / Steel
Efficiency @ 1000 RPM	0.88 %
Box Width	80mm
Box Length	132mm
Use Output Key	KK5-35
Input Key Length	20mm
Output Key Width	5mm
Shaft Output Type	Right Angle
Output Key Height	5mm
Input Bore Depth	N/A
Output Key Length	35mm
Output Bore Depth	N/A
