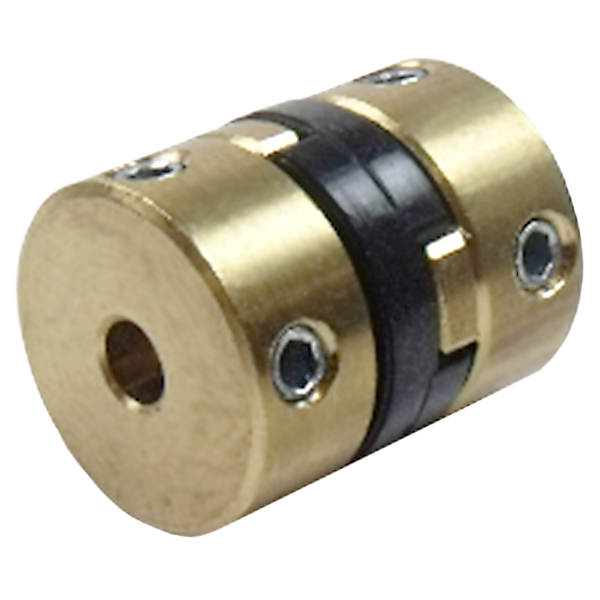

Brass Oldham Coupling: 3mm x 3/16" Bores

Oldham coupling, Set Screw, Brass, 3/8" OD, 3mm x 3/16" Bores, Blind Bore
Price Each:
om $11.20
Total Price:
$18.6600
Quantity:

 To $11.20

500.09.1419 Specifications:

  • Unit System: inch/metric
  • Bore B1: 3mm
  • Bore B2: 0.1875 in.
  • Outside Diameter: 0.400 in.
  • Type: Oldham
  • Material: Brass / Acetal
  • Bore Tolerance: +.0012 in.
  • Backlash: Zero Backlash
  • Fastening Method: Set Screw
  • Minimum Order Qty.: 1
  • Max RPM: 3500
  • Torsion Stiff (Lb*in/Deg): 4.63
  • Electrical Isolation: Yes
  • Length Extended: N/A
  • Max Angular Offset: 2 degrees
  • Max Axial Offset: +0.002/-0 in.
  • Mass: 4g
  • Max Torque: 1.90 lb-in
  • Temperature Range: -4°F to +140°F
  • HP @ 1750 RPM: N/A
  • Typ Air Gap: N/A

500.09.1419 Product Files:
