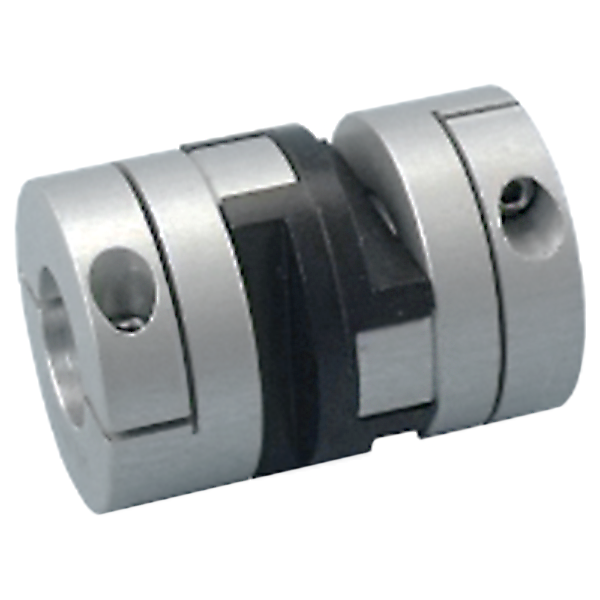

Aluminum Oldham Coupling: 3/16" x 1/4" Bores
Oldham coupling, Clamp, Aluminum, 3/4" OD, 3/16" x 1/4" Bores
Price Each:
$17.0820
Total Price:
$28.4700
Quantity:
Add to Cart
Request Quote
1-4 at $28.4700 each
5-9 at $26.0501 each
10-24 at $24.6266 each
25-49 at $23.2031 each
50-99 at $21.9219 each
100-249 at $20.4984 each
250-499 at $18.2208 each
500+ at $17.0820 each
To
$17.0820
516H19.1924 Specifications:
Unit System: inch
Bore B1: 0.1875 in.
Bore B2: 0.2500 in.
Outside Diameter: 0.750 in.
Type: Oldham
Material: Aluminum / Acetal
Bore Tolerance: +.0012 in.
Backlash: Zero Backlash
Fastening Method: Clamp
Minimum Order Qty.: 1
Max RPM: 3500
Torsion Stiff (Lb*in/Deg): 17.76
Electrical Isolation: Yes
Length Extended: N/A
Max Angular Offset: 2 degrees
Max Axial Offset: +0.004/-0 in.
Mass: 14g
Max Torque: 15.00 lb-in
Temperature Range: -4°F to +140°F
HP @ 1750 RPM: N/A
Typ Air Gap: N/A
516H19.1924 Product Files:
Catalog Page.pdf
