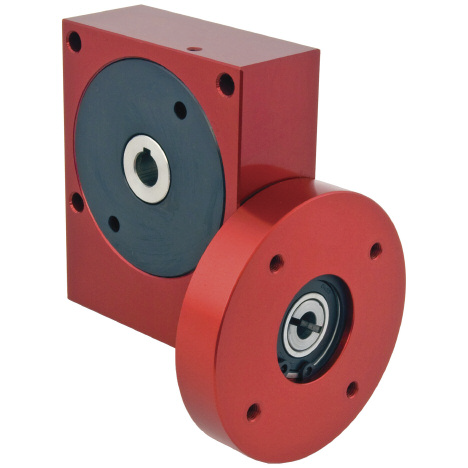

Worm Wheel Gearbox - 60:1 Ratio

Worm Wheel Gearbox, 0.3125" Input Bore, 0.3750" Hollow Bore Output, 60:1 Ratio
Price Each: From $449.45
Total Price: $599.26
Quantity:

Quantity 1-9 10-24 25-49 50-99 100+
Price for each $599.26 $575.29 $539.33 $497.39 $449.45

PFA40-60 Specifications:

  • Unit System: inch
  • Ratio: 60:1
  • Input Bore Diameter: 0.3125 in. h7
  • Output Bore Diameter: 0.3750 in. H7
  • % Efficiency @ 1000 RPM: 65
  • Type: Worm Wheel
  • Weight: 2.536 lb.
  • Backlash: ≤30 arc-min
  • Material: Alum. / Steel
  • Box Height: 3.55 in.
  • Box Width: 3.58 in.
  • Box Length: 1.26 in.
  • Output Torque @ 3000 RPM: 56.6 lbf.in.
  • Max Input RPM: 4,000
  • Input Shaft Length: 1.58 in.
  • Flange Diameter: 2.25 in.
  • Use Single Output Shaft: PA40-X
  • Use Double Output Shaft: PA40-DX
  • Use Output Key: KK125-1250
  • Output Type: Right Angle
  • Use Input Key: SEP2-14
