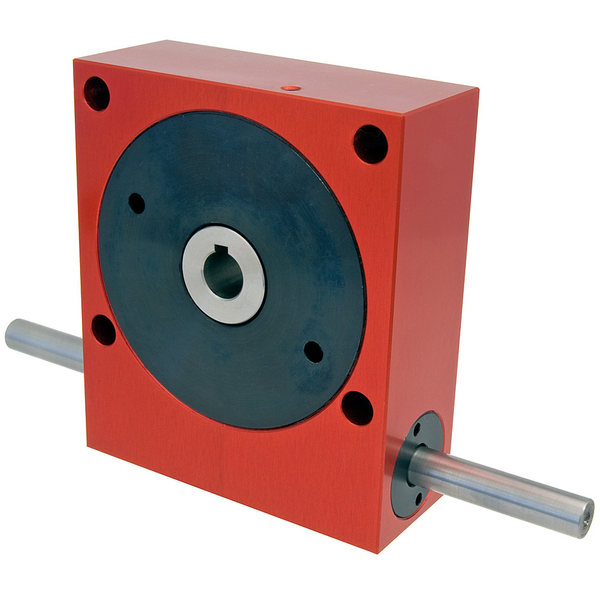

Worm Wheel Gearbox - 60:1 Ratio

10mm Input Shaft, 12mm Hollow Bore Output, 60:1 Ratio
Backlash ≅ 30 arc minutes
Price Each:
$420.73
Total Price:
$560.97
Quantity:

Quantity 1-9 10-24 25-49 50-99 100+
Price for each $560.97 $538.53 $504.87 $465.61 $420.73

P45-60 Specifications:

  • Ratio: 60:1
  • Unit System: metric
  • Backlash: ≤30 arc-min
  • % Efficiency @ 1000 RPM: 67
  • Input Shaft Diameter: 10mm h7
  • Type: Worm Wheel
  • Material: Alum. / Steel
  • Box Height: 110mm
  • Box Width: 95mm
  • Box Length: 38mm
  • Max Input RPM: 3,500
  • Output Torque @ 3000 RPM: 14.7Nm
  • Output Type: Right Angle
  • Weight: 3.748 lb.
  • Input Shaft Length: 45mm
  • 0.0000: 1

P45-60 Product Files:
