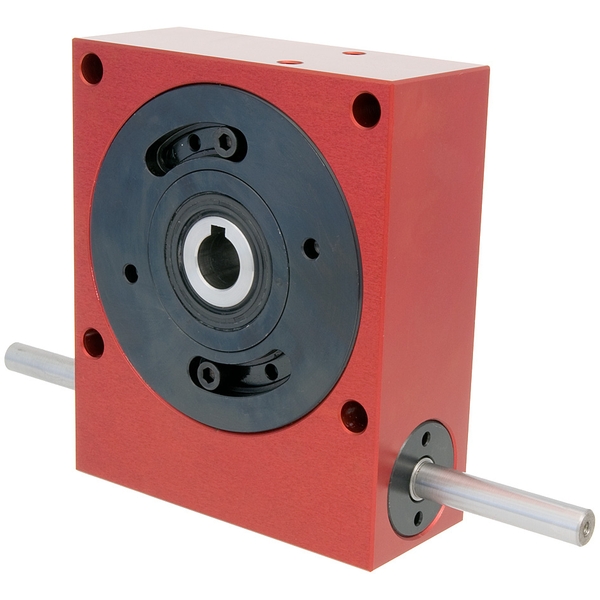

Worm Wheel Gearbox - 5:1 Ratio

Part Number: P55-5A

10mm Input Shaft, 15mm Hollow Bore Output, 5:1 Ratio, Backlash ≤8 arc minutes
Price Each:
om $921.74
Quantity:
Total Price:
$1,212.8200
Quantity:Price:
1-9 $1,212.82
10-24 $1,164.31
25-49 $1,091.54
50-99 $1,006.64
100+  $921.74
P55-5A Specifications:
Ratio 5:1
Input Shaft Diameter 10mm h7
% Efficiency @ 1000 RPM 90
Material Alum. / Steel
Box Width 110mm
Box Length 46mm
Use Output Key KK5-30
Use Single Output Shaft P55-X
Use Double Output Shaft P55-DX
P55-5A Product Files:
• Catalog Page.pdf
View CAD Model View CAD Library
